Introduction of equipment:

Packaging bags will be greasy after packaging and sterilization. In order to effectively remove pollution and speed up the time of labeling and improve economic efficiency, the cleaning and drying line of packaging bag developed by Mingchao machinery can effectively improve the production efficiency of the enterprise.

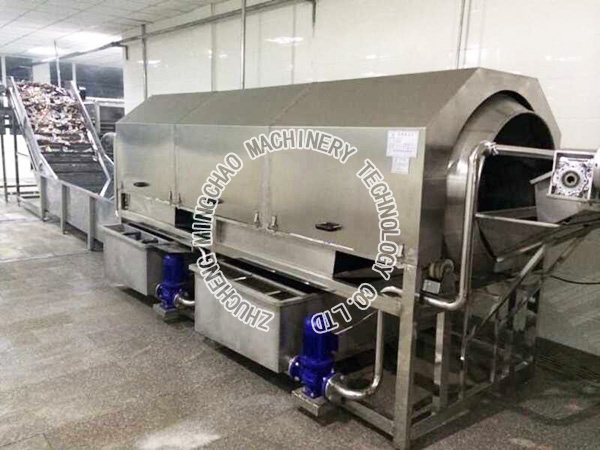

The inside of the bag washing machine is made to spiral shape with the brush. In the process of cleaning, the cylinder is rotated continuously. The food bag is also continuously rotated, and the oil pollution on the surface of the packing surface is cleaned with the continuous contact with the hair rollers, and the internal spray is also added to the continuous rinsing material. And the cleaning section can be divided into two stages. The first stage can add certain detergent and disinfectant to the product, and then clean it for second times. The design is more reasonable and humanized.

 Generally speaking, the bag cleaning and drying line includes:

Elevator -- bag washing machine -- observation pool -- vibration dewatering machine -- packaging bag drying machine

The composition of the specific equipment is decided by the requirements of the customers.

Bag washing machine features:

1,the machine cleaned and cleaned the grease stains and stains on the surface of the bags after packaging, so as to make the bags clean and glossy, and improve the quality of the products.

2. equipment is made of SUS304 stainless steel, which is consistent with the GMP/HACCP certification requirements, and is in line with the national export standard.

3. two parts: washing with detergent section and the cleaning section are designed and run synchronously. The washing section is cleaned with detergent and can effectively remove oil. The cleaning section is washed with clean water. The purpose is to remove the residual detergent and so on. It is more convenient and cleaner.

4. energy conservation, the use of circulating water, efficient water saving. It has high automation, simple operation and convenient maintenance.

5. running smoothly, high safety performance and thorough cleaning.

6. with variable frequency drive, the speed of cleaning can be adjusted.

Packaging bag dryer features:

Mesh belt dryer is a batch and continuous production of drying equipment, the main heating way is electric heating, steam heating, hot air heating. The main principle is to spread the material evenly on the net belt, the net belt adopts 12-60 purpose wire mesh belt, the drive device is dragged and moved in the dryer, the hot air passes through the material between the materials and the water vapor is discharged from the wetting hole, thus the purpose of drying is achieved, the length of the box is composed of the standard section, in order to save the site. The drying mechanism can be multi-storey. There are two rooms, three storey, two rooms, five stories, and the length is 6-40m, the effective width is 0.6-3.0m.

Welcome customers to inquire or visit our company.
